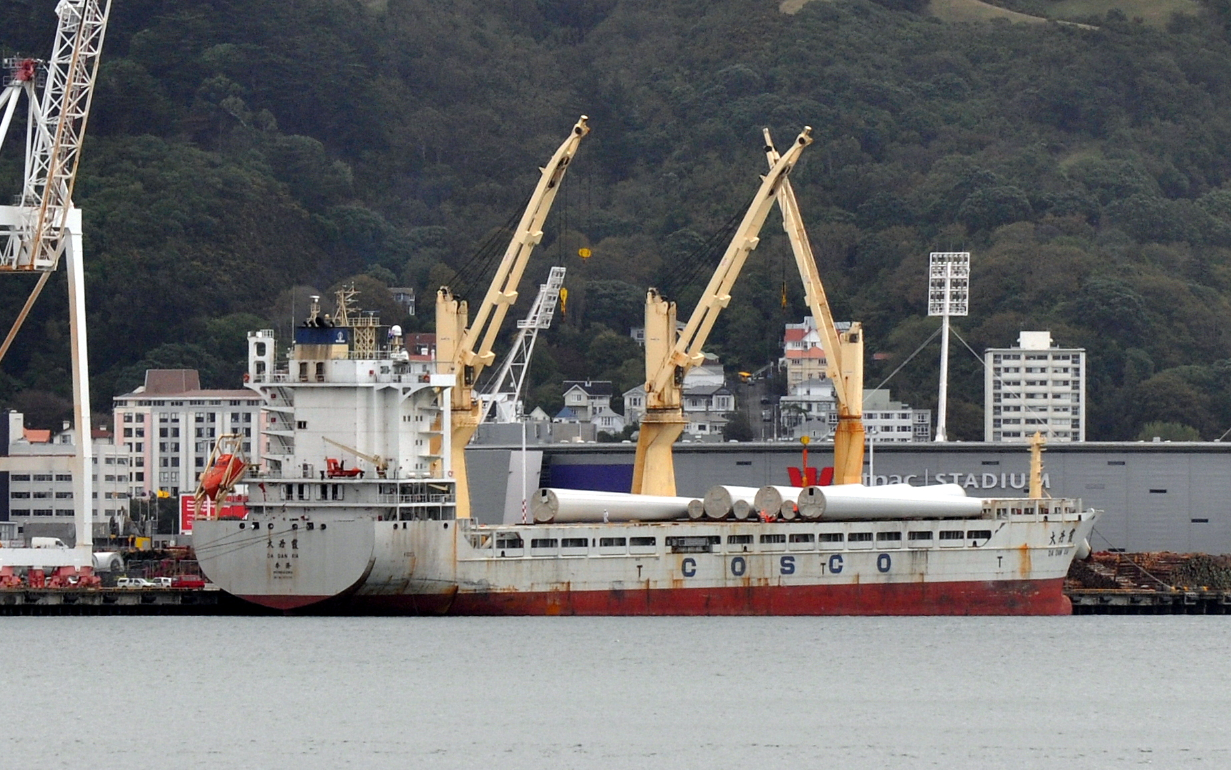

The Da Dan Xia in Wellington, April 2014. Courtesy of John Hermans.
Lifting sling failure on freefall lifeboat, general cargo ship Da Dan Xia, Wellington, 14 April 2014
Status
Closed
Occurrence Date
Report Publication Date
Jurisdiction
NZ
On 14 April 2014 the general cargo vessel Da Dan Xia was berthed at the port of Wellington, New Zealand, preparing to load a cargo of logs. The crew were conducting a launch-and-retrieval drill for the vessel's freefall lifeboat, using the "alternative" launching and retrieval davit.
The lifeboat was lowered into the water with no crew on board. Four crew members then boarded the lifeboat and manoeuvred it around the harbour for 10 minutes before connecting it back to the retrieval davit. A purpose-built lifting sling made up of four wire rope pennants was used to connect the lifeboat to the retrieval davit. Once the crew were seated with their restraints fastened, hoisting the lifeboat from the water commenced. The lifeboat had been hoisted to about deck level when first one and then the remaining three wire pennants parted and the lifeboat fell several metres back into the sea.
Meanwhile, one of the crew members had released his restraints in anticipation of disembarking the lifeboat. He was thrown clear of his seat and sustained a cut to the head, requiring overnight hospitalisation. None of the other three crew members was seriously injured. The lifeboat was undamaged.
The Transport Accident Investigation Commission (Commission) found that the wire pennants parted under tensile overload because they had all been significantly weakened by severe corrosion. Corrosion had gone undetected inside a plastic sheathing that the manufacturer of the lifting sling had placed around the wire pennants.
The presence of the plastic sheathing encasing the wire rope meant that neither the crew nor the various surveyors tasked with inspecting the launching system could inspect and maintain the wire rope as required by the International Maritime Organization Convention for the Safety of Life at Sea, 1974.
The Commission found that encasing steel wire in plastic sheathing when it is to be used in the marine environment has significant implications for maritime safety, especially when the wire must be regularly inspected and maintained in order to remain fit for purpose. A recommendation was made to the Director of Maritime New Zealand to raise this safety issue through the appropriate International Maritime Organization safety committee.
The Commission also recommended that the manufacturer of the lifeboat and the lifting sling cease the practice of totally encasing wire rope pennants with plastic, and inform all owners and operators using its system of this accident and the danger of leaving the wires encased with plastic sheathing.
The operator of the Da Dan Xia took the safety action of removing the plastic sheathing from all similar lifting slings in its fleet of ships.
A key safety lesson arising from this inquiry is that seafarers and surveyors alike must not make assumptions about the condition of any wire or other equipment that they cannot see, especially when the wire or other equipment has a safety-critical purpose and is required by rules, regulations or procedures to be thoroughly examined.
The lifeboat was lowered into the water with no crew on board. Four crew members then boarded the lifeboat and manoeuvred it around the harbour for 10 minutes before connecting it back to the retrieval davit. A purpose-built lifting sling made up of four wire rope pennants was used to connect the lifeboat to the retrieval davit. Once the crew were seated with their restraints fastened, hoisting the lifeboat from the water commenced. The lifeboat had been hoisted to about deck level when first one and then the remaining three wire pennants parted and the lifeboat fell several metres back into the sea.
Meanwhile, one of the crew members had released his restraints in anticipation of disembarking the lifeboat. He was thrown clear of his seat and sustained a cut to the head, requiring overnight hospitalisation. None of the other three crew members was seriously injured. The lifeboat was undamaged.
The Transport Accident Investigation Commission (Commission) found that the wire pennants parted under tensile overload because they had all been significantly weakened by severe corrosion. Corrosion had gone undetected inside a plastic sheathing that the manufacturer of the lifting sling had placed around the wire pennants.
The presence of the plastic sheathing encasing the wire rope meant that neither the crew nor the various surveyors tasked with inspecting the launching system could inspect and maintain the wire rope as required by the International Maritime Organization Convention for the Safety of Life at Sea, 1974.
The Commission found that encasing steel wire in plastic sheathing when it is to be used in the marine environment has significant implications for maritime safety, especially when the wire must be regularly inspected and maintained in order to remain fit for purpose. A recommendation was made to the Director of Maritime New Zealand to raise this safety issue through the appropriate International Maritime Organization safety committee.
The Commission also recommended that the manufacturer of the lifeboat and the lifting sling cease the practice of totally encasing wire rope pennants with plastic, and inform all owners and operators using its system of this accident and the danger of leaving the wires encased with plastic sheathing.
The operator of the Da Dan Xia took the safety action of removing the plastic sheathing from all similar lifting slings in its fleet of ships.
A key safety lesson arising from this inquiry is that seafarers and surveyors alike must not make assumptions about the condition of any wire or other equipment that they cannot see, especially when the wire or other equipment has a safety-critical purpose and is required by rules, regulations or procedures to be thoroughly examined.
Location
Wellington (-41.274200,174.788500) [may be approximate]
