Executive summary

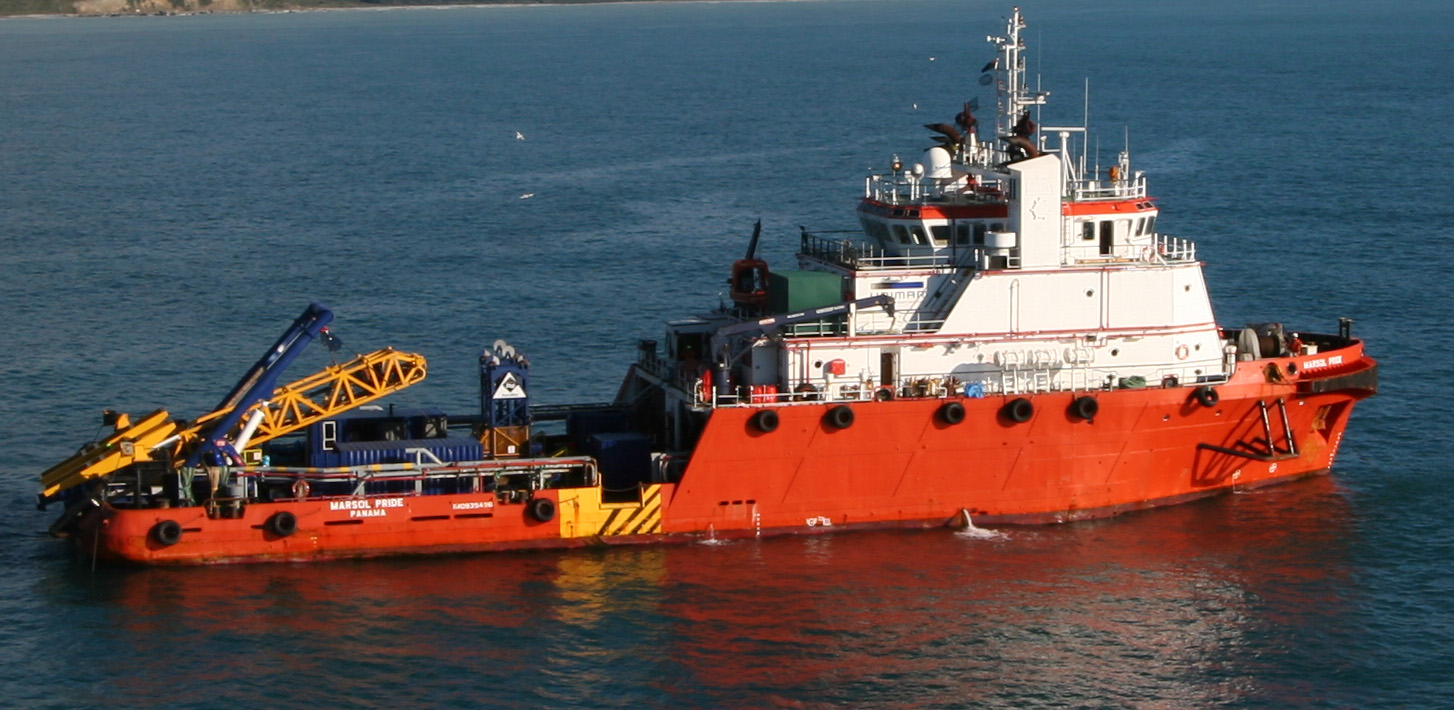

On 23 May 2010 the general-purpose oilfield support vessel Marsol Pride was conducting underwater operations within the Tui oil and gas field off the west coast of New Zealand. The Marsol Pride was fitted with a fixed carbon dioxide (CO2) fire smothering system for its engine room. Late that night a valve on one of the CO2 pilot cylinders developed a leak and charged the system ready for release. A second leak in the main control valve then caused the entire system to activate resulting in an uncontrolled release of CO2 gas into the engine room. An automatic alarm in the engine room had warned the duty engineer there of the impending release so he had left the engine room to investigate the reason for the alarm. The incident caused one of the 2 main propulsion engines to shut down due to air starvation; other than that there was no damage to
the vessel and no one was injured. An uncontrolled or inadvertent activation of an engine room fixed CO2 gas fire smothering system is a serious event because the CO2 gas displaces any air in the space so that it cannot sustain human life, and it can immobilise the ships propulsion and generator systems at a critical part of an operation. The lessons learned from this incident were:
any component in a fixed CO2 gas fire-fighting installation, the failure of which can cause serious harm or immobilise a vessel, should be inspected and tested often enough to detect any deterioration in performance so that remedial action can be taken to avert a failure
the conditions under which control valves or any other component in a fixed CO2 system are tested should be the same as or greater than the normal operating conditions for the system.
A safety recommendation was made to the Director for Maritime New Zealand to forward this report to the International Maritime Organization (IMO) and the International Association of Classification Societies so that they can draw on the lessons learned from this incident and consider amending the current
guidelines that currently only suggest an inspection of control valves only once every 5 years.
Related Recommendations
Critical components in a fixed CO2 gas fire fighting system such as control valves can cause serious harm or immobilise a vessel if they fail. It is a concern that such components are only required to be internally examined every 5 years and are not required to be tested at the design operating pressure at all.
